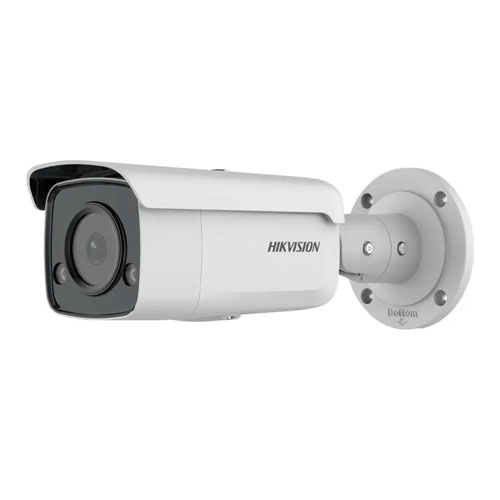

Cámara de red tipo bala fija 4 K ColorVu – DS-2CD2T87G2-L

Cámara

• Sensor De Imagen: 1/1.2″ Progressive Scan CMOS
• Max. Resolución: 3840 × 2160
• Iluminación Mínima: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Tiempo De Obturación: 1/3 s to 1/100,000 s
• Ajuste De Ángulo: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lente

• Focal Length & FOV: 2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124°; 4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°; 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
• Iris Type: Fixed
• Apertura: F1.0
• Depth Of Field: 2.8 mm: 4.5 m to ∞; 4 mm: 7 m to ∞; 6 mm: 13 m to ∞

DORI

• DORI: 2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m; 4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m; 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

Iluminador

• Tipo De Luz Suplementaria: White Light
• Rango De Luz Suplementaria: 60 m
• Luz De Suplemento Inteligente: Yes

Vídeo

• Main Stream: 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
• Compresión De Video: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
• Vídeo Bitrate: 32 Kbps to 16 Mbps
• Tipo H.264: Baseline Profile/Main Profile/High Profile
• Tipo H.265: Main Profile
• Bit Rate Control: CBR/VBR
• Codificación De Video Escalable (SVC): Yes
• Región De Interés (ROI): 1 fixed region for main stream and sub-stream

Red

• Protocolos: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Vista En Vivo Simultánea: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• Usuario/Operador: Up to 32 users. 3 user levels: administrator, operator and user
• Seguridad: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Almacenamiento En Red: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• Cliente: iVMS-4200, Hik-Connect, Hik-Central
• Navegador Web: Plug-in required live view: IE 10, IE 11; Plug-in free live view : Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+

Imagen

• Interruptor De Parámetros De Imagen: Yes
• Configuración De Imagen: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Interruptor Día/Noche: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 130 dB
• SNR: ≥ 52 dB
• Mejora De La Imagen: BLC, HLC, 3D DNR

Interfaz

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
• Reset Key: Yes

Evento

• Evento Básico: Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Evento Inteligente: Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)); Scene change detection
• Linkage: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email

Deep Learning Function

• Captura De La Cara: Yes

General

• Alimentación: 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection; PoE: (802.3af, Class 3, 36 V to 57 V), 0.27 A to 0.17 A, max. 9.5 W
• Dimensión: Ø105 × 289.5 mm (Ø4.1″ × 11.4″)
• Dimensión Del Paquete: 385 × 190 × 180 mm (15.2″ × 7.5″ × 7.1″) Approx. 1190 g (2.6 lb.)
• Con Peso Del Paquete: Approx. 1700 g (3.7 lb.)
• Condiciones De Almacenaje: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condiciones De Inicio Y Funcionamiento: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Idioma: 33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• Función General: Anti-flicker, heartbeat, password reset via e-mail, pixel counter

Certificaciones

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
• Seguridad: UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017)
• Ambiente: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protección: IP67 (IEC 60529-2013)
