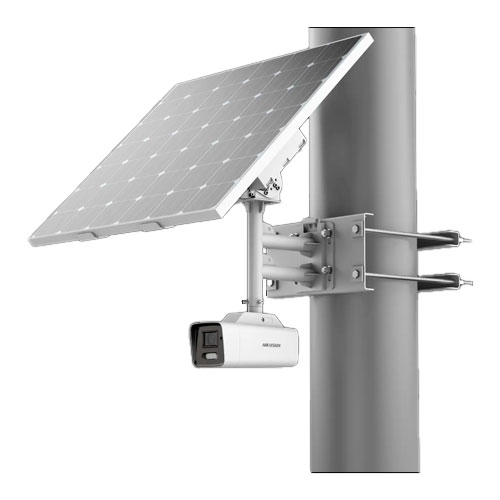

Kit de cámara de red 4G con energía solar tipo bala fija ColorVu de 4MP – DS-2XS6A47G1-LS/C36S80

Kit de cámara de red 4G con energía solar tipo bala fija ColorVu de 4MP – DS-2XS6A47G1-LS/C36S80

Cámara

• Sensor De Imagen: 1/1.8″ Progressive Scan CMOS
• Max. Resolución: 2560 × 1440
• Iluminación Mínima: Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
• Tiempo De Obturación: 1 s to 1/100,000 s

Lente

• Focal Length & FOV: 2.8 mm, horizontal FOV: 105.7°, vertical FOV: 57.3°, diagonal FOV: 124.9°; 4 mm, horizontal FOV: 88.7°, vertical FOV: 44.7°, diagonal FOV: 107.5°
• Lente: Fixed focal lens, 2.8 and 4 mm optional
• Iris Type: Fixed
• Apertura: F1.0
• Montura Del Lente: M16

DORI

• DORI: 2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 5.5 m; 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7.5m

Iluminador

• Tipo De Luz Suplementaria: White Light
• Rango De Luz Suplementaria: Up to 30 m
• Luz De Suplemento Inteligente: Yes

Vídeo

• Main Stream: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 12.5 fps (640 × 480, 640 × 360); 60 Hz: 15 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 1 fps (1280 × 720, 640 × 480); 60 Hz: 1 fps (1280 × 720, 640 × 480)
• Compresión De Video: Main stream: H.264/H.265; Sub-stream: H.264/H.265/MJPEG; Third Stream: H.265/H.264, *Performance mode: main stream supports H.264+, H.265+
• Vídeo Bitrate: 32 Kbps to 8 Mbps
• Tipo H.264: Baseline Profile,Main Profile,High Profile
• Tipo H.265: Main Profile
• Bit Rate Control: CBR/VBR
• Codificación De Video Escalable (SVC): H.264 and H.265 encoding
• Región De Interés (ROI): 4 fixed regions for main stream

Audio

• Compresión De Audio: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Velocidad De Bits De Audio: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Frecuencia De Muestreo De Audio: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Filtro De Ruido Ambiental: Yes

Red

• Vista En Vivo Simultánea: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Protocolos: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• Usuario/Operador: Up to 32 users. 3 user levels: administrator, operator and user
• Seguridad: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
• Almacenamiento En Red: NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Cliente: Hik-Connect (proactive mode also supports), Hik-central Professional
• Navegador Web: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

• SIM Card Type: MicroSIM
• Frecuencia: DS-2XS6A47G1-LS/C32S80: LTE-TDD: Band38/40/41, LTE-FDD: Band1/3/5/7/8/20/28, WCDMA: Band1/5/8, GSM: 850/900/1800MHz; DS-2XS6A47G1-LS/C32S80 (US): LTE-FDD: Band2/4/5/12/13/66/71, WCDMA: Band2/4/5; DS-2XS6A47G1-LS/C32S80 (LA): LTE-TDD: Band38/40, LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66, WCDMA: Band1/2/3/4/5/8, GSM: 850 / 900 / 1800 / 1900MHz; DS-2XS6A47G1-LS/C32S80 (JP): LTE-TDD: Band41, LTE-FDD: Band1/3/8/11/18/19/21/26/28, WCDMA: Band 1 / 6 / 8 / 19
• Estándar: DS-2XS6A47G1-LS/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM; DS-2XS6A47G1-LS/C32S80 (US): LTE-FDD/WCDMA; DS-2XS6A47G1-LS/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM; DS-2XS6A47G1-LS/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA

Imagen

• Wide Dynamic Range (WDR): 130 dB
• Interruptor Día/Noche: Day, Night, Auto, Schedule
• Mejora De La Imagen: BLC, HLC, 3D DNR, Defog
• Interruptor De Parámetros De Imagen: Yes
• Configuración De Imagen: Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• SNR: ≥ 52 dB
• Máscara De Privacidad: 4 programmable polygon privacy masks

Interfaz

• RS-485: 1 RS-485 (half duplex, connect to external battery)
• Audio: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarma: 1 input(s), 1 output(s) (max. 12 VDC, 1 A)
• On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB; Built-in 64 GB eMMC storage
• Reset Key: Yes
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Salida De Alimentación: 12 VDC, max. 1000 mA

Evento

• Evento Básico: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
• Evento Inteligente: Line crossing detection, Intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection, *Smart events are only supported under performance mode.
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

General

• Alimentación: 12 VDC ± 20%, 4-pin M8 waterproof connector; 1. Standby power consumption: 53 mW; 2. The average power consumption of 24 hours: 2 W (4G transmission is excluded); 3. The max. power consumption: 3.2 W
• Material: Front cover: metal, body: metal, bracket: metal
• Dimensión: 882.6 mm × 706.3 mm × 760 mm (34.8″ × 27.8″ × 29.9″) (Max. size of the camera after it is completely assembled)
• Dimensión Del Paquete: 862 mm × 352 mm × 762 mm (33.9″ × 13.9″ × 30.0″); Approx. 30.2 kg (66.5 lb.)
• Con Peso Del Paquete: Approx. 36.3 kg (80.0 lb.)
• Condiciones De Almacenaje: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
• Condiciones De Inicio Y Funcionamiento: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
• Idioma: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• Función General: Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Batería

• Tipo De Batería: Lithium
• Capacidad: 360 WH (90 WH for each battery)
• Voltaje De La Batería: 10.8 V
• Max. Output Voltage: 12.6 V
• Temperatura De Funcionamiento: Charging: -20 °C to 45 °C (-4 °F to 113 °F); Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Vida De Batería: More than 500 cycles
• Ciclo De Vida: Performance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days, *in cloudy/rainy days (25 °C)
• Battery Weight: Approx. 3.3 kg (7.3 lb.)
• Dimensión Extendida: 221 mm × 84 mm × 37.3 mm (8.7″ × 3.3″ × 1.5″)

Certificaciones

• EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); FCC (47 CFR Part 15, Subpart B); IC (ICES-003: Issue 7)
• RF: CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133); ICASA: same as CE-RED; FCC ID (47 CFR Part15 Subpart C); IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5); MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
• Seguridad: CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); LOA (IEC/EN 60950-1)
• Ambiente: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protección: Camera: IP67 (IEC 60529-2013), Wind resistance 12 level, up to 40 m/s wind speed resistance
