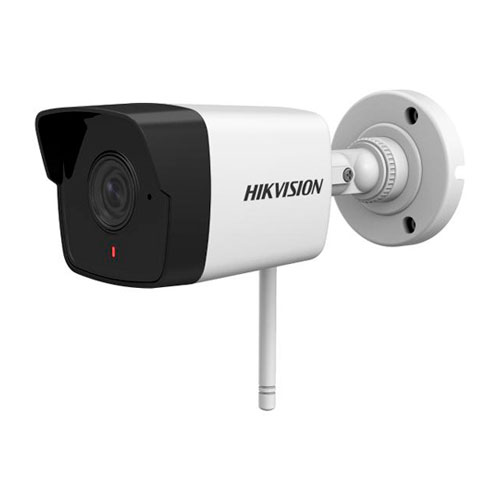

Cámara de red tipo bala fija para exteriores de 2 MP con micrófono incorporado – DS-2CV1021G0-IDW1(4mm)(D)/FUS
Características Inteligentes:
- Activador De Alarma:
- Motion detection
- Network disconnected
- IP address conflict
- Illegal login
- HDD full
- HDD error
Cámara:
- Sensor De Imagen: 1/2.7″ Progressive Scan CMOS
- Iluminación Mínima: Color: 0.028 Lux @ (F2.0, AGC ON)
- Velocidad De Obturación: 1/3 s to 1/100,000 s
- Obturador Lento: Yes
- Ajuste De Ángulo:
- Pan: 0° to 360°
- Tilt: -90° to 90°
- Rotate: 0° to 90°
- WDR: DWDR
- Día Y Noche: IR Cut Filter
Lente:
- Apertura: F2.0
- Enfoque: Fixed
- FOV:
- 2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5°
- 4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°
- Montura Del Lente: M12
- Longitud Focal: 2.8/4 mm
Red:
- Almacenamiento En Red:
- Support micro SD/SDHC/SDXC card (max. 256 GB)
- Local storage and NAS (NFS, SMB/CIFS)
- Auto network replenishment (ANR)
- Activador De Alarma: Motion detection, illegal login
- Protocolos: TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
- API: ISAPI
- Vista En Vivo Simultánea: Up to 6 channels
- Usuario/Operador: Up to 32 users, 3 levels: Administrator, Operator, and User
- Cliente:
- Wired network: Hik-Connect, iVMS-4200
- Wi-Fi: iVMS-4200 (Wi-Fi connection with Hik-Connect directly is not possible.)
- Navegador Web: Plug-in required live view: IE8, IE9, IE10, IE11; Local service: Chrome 57.0+, Firefox 52.0+
- Función General: Anti-flicker, heartbeat, mirror, password protection, password reset via e-mail
- Versión Del Firmware: V5.5.101
Vídeo:
- Max. Resolución: 1920 × 1080
Audio:
- Filtro De Ruido Ambiental: Yes
- Frecuencia De Muestreo De Audio: 8 kHz/16 kHz
- Interfaz:
- Botón De Reinicio: Yes
- On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
- Interfaz De Comunicación: 1 RJ45 10M/100M self-adaptive Ethernet port
- Audio: 1 Built-in mic, mono sound
Imagen:
- Max. Resolución: 1920 × 1080
- Main Stream:
- 50Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream:
- 50Hz: 25 fps (640 × 360)
- 60Hz: 30 fps (640 × 360)
- Mejora De La Imagen: BLC, HLC, 3D DNR
- Interruptor Día/Noche: Day, night, auto, scheduled
- Configuración De Imagen: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
General:
- Condiciones De Operación: -30 °C to +60 °C (-22°F to +140 °F), humidity 95% or less (non-condensing)
- Fuente De Alimentación: 12 VDC ± 25%, Ø5.5 mm coaxial power plug
- Power Consumption And Current: 12 VDC, 0.4 A, max. 5 W
- Material: Front cover: metal, back cover: plastic
- Dimensiones:
- Camera: 177.6 mm × 67.8 mm × 66.2 mm (7″ × 2.7″ × 2.6″)
- With package: 264 mm × 129 mm × 120 mm (10.4 × 5.1″ × 4.7″)
- Peso:
- Camera: approx. 270 g (0.6 lb.)
- With package: approx. 470 g (1 lb.)
- Certificaciones:
- Protección: Ingress protection: IP66 (IEC 60529-2013)
- Compresión Estándar:
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264
- Tipo H.264: Baseline Profile/Main Profile
- Tipo H.265: Baseline Profile
- Vídeo Bitrate: 32 Kbps to 8 Mbps
- Compresión De Audio: G.711/G.722.1/G.726/MP2L2/PCM
- Velocidad De Bits De Audio: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)
IR:
- Rango IR: Up to 30 m
- Longitud De Onda: 850 nm
Wi-Fi (-W):
- Wireless Standards: IEEE 802.11b/g/n
- Rango De Frecuencia: 2.4 GHz to 2.4835 GHz
- Tasas De Transferencia:
- 11b: 11 Mbps
- 11g: 54 Mbps
- 11n: up to 150 Mbps
- Seguridad: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
- Channel Bandwidth: 20 MHz/40 MHz
- Alcance Inalámbrico: Up to 80 m (The performance varies based on the actual environment.)
- Protocolos:
- 802.11b: CCK, DQPSK, DBPSK
- 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
